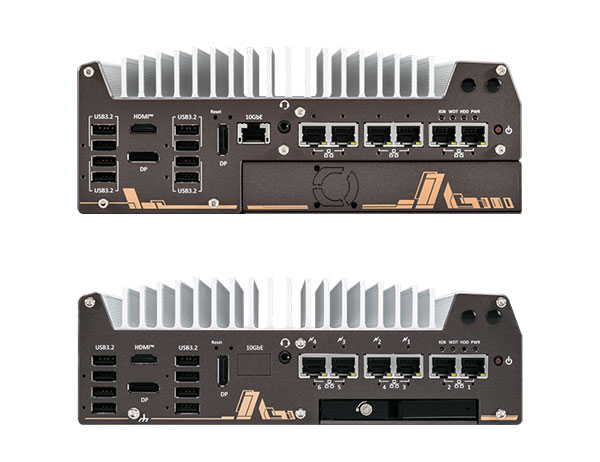

Nuvo-11000 Series
Mô tả
Intel® Core™ Ultra 200S Series Fanless Embedded Computer with 2.5GbE/ GbE, USB 3.2, 8-CH DIO, optional 10GbE and Expansion Cassette & MezIO® Interface
Nuvo-11000 series is Neousys' flagship rugged embedded computer built on the Intel® Core™ Ultra 200S series platform. Powered by TSMC's advanced 3nm photolithography, the latest Core™ Ultra 200 processors offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.
Nuvo-11000 series provides comprehensive I/O capabilities for industrial applications. It includes five 2.5Gb and a 1Gb Ethernet ports with optional PoE+ capability, one optional 10GbE port for high-speed data transfer or 10Gb industrial camera, and eight USB 3.2 Gen2 ports for USB3 cameras. Additionally, an upgraded M.2 Gen5x4 slot supports the latest NVMe SSDs, achieving read/ write speeds over 11,000 MB/s and the system also features 4x isolated DI and 4x isolated DO for automation and machine vision applications.
For extended functionality, the series supports add-on cards via its expansion Cassette, proprietary MezIO® interface, and internal mini-PCIe slots, ensuring adaptability to diverse application requirements.
The advanced Intel® Core™ Ultra 200S processors also bring better energy efficiency to the Nuvo-11000 platform. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power*. Combing a proven thermal design with versatile I/O functions, Nuvo-11000 offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.
Supports Intel® Core™ Ultra 200S Series 24C/ 24T 35W/ 65W LGA1851 CPU
Rugged, -25°C to 70°C fanless operation
Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
Up to 8x USB 3.2 Gen2 ports
4-CH isolated DI and 4-CH isolated DO
1x optional 10GBASE-T Ethernet
Expansion Cassette for PCIe add-on card accommodation
( View PCIe Add-on Cards )
MezIO® interface for easy function expansion
Chi tiết |
|---|
Processor
Supports Intel® Core™ Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP
- Intel® Core™ Ultra 9 285/285T - Intel® Core™ Ultra 7 265/265T - Intel® Core™ Ultra 5 245/245T |
Chipset
Intel® Q870 Platform Controller Hub (Nuvo-11006)
Intel® H810 Platform Controller Hub (Nuvo-11002) |
Graphics
Integrated Intel Xe LPG Graphics
|
Memory
Up to 128GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots)
|
I/O Interface
-Ethernet Port 1x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM
(Nuvo-11002E/ LP) with screw-lock 5x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11006E/ LP) with screw-lock 1x optional 10GBASE-T Ethernet (Nuvo-11006E/ LP) -PoE+ Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget -USB 8x USB 3.2 Gen2 ports (Nuvo-11006E/ LP), 2x USB 3.2 Gen2, 2x USB3.2 Gen1 and 4x USB2.0 ports (Nuvo-11002E/ LP) -Isolated DIO 4-CH isolated DI and 4-CH isolated DO -Video Port 1x HDMI™, supporting 3840 x 2160 resolution,2x DisplayPort, supporting 3840 x 2160 resolution -Serial Port 2x software-programmable RS-232/ 422/ 485 ports (COM1/ 2) 2x 3-wire RS-232 ports (COM3/ 4) -Audio 1x 3.5 mm jack for mic-in and speaker-out |
Storage Interface
-SATA HDD 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 (Nuvo-11000E), 1x hot-swappable 2.5" HDD tray (7mm HDD/ SSD) and 1x internal 2.5" SATA port, supporting RAID 0/ 1 (Nuvo-11000LP)
-M.2 NVMe 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD (Nuvo-11006E/ LP) |
Internal Expansion Bus
-PCI Express 1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette (Nuvo-11002E/ 11006E)Mini PCI Express 2x full-size mini PCI Express socket

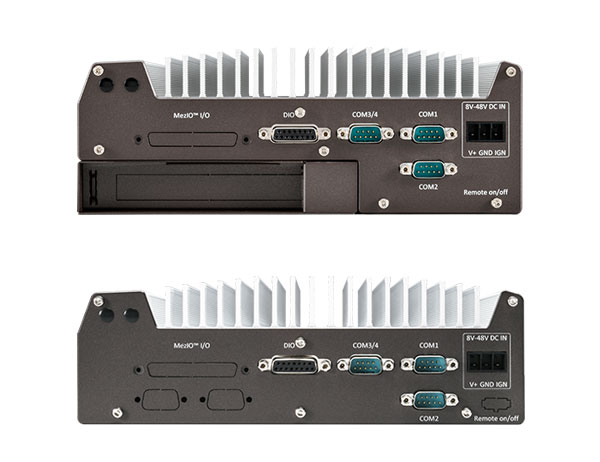

-Expandable I/O 1x MezIO® expansion port for Neousys MezIO® modules USB2.0 1x USB 2.0 port with Type-A connector (internal, Nuvo-11006E/ LP) |
DC Input
1x 3-pin pluggable terminal block for 8V to 48VDC DC input with optional ignition power control
|
Dimension
Weight 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-11000E series)
240 mm (W) x 225 mm (D) x 79 mm (H) (Nuvo-11000LP series) 3.58 kg (Nuvo-11000E Series) 3.36 kg (Nuvo-11000LP series) |
Operating
Temperature With 35W CPU
- 25°C to 70°C* With 65W CPU - 25°C to 70°C* (configured as 35W TDP) - 25°C to 50°C* (configured as 65W TDP) |
