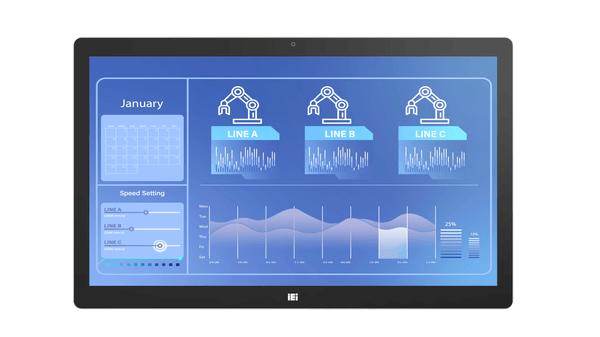

12.1” Latest Generation Industrial Monitor
» Front OSD, easy access for setting adjustment
» Speakers positioned at the front, ensuring clear sound delivery even in panel mount
» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition
» USB 3.2 Gen1 Type-A supports 10W
» IP65 compliant front panel with aluminum frame
» Anti-glare and anti-UV PCAP
» High brightness (HL only)
Chi tiết |
|---|
Display
LCD Size 12.1” (4:3)
Brightness(cd/m2) 500 (1000 for HL) Max Resolution 1024 x 768 Contrast Ratio 1000:1 Backlight MTBF(hrs) 50000 |
I/O Ports
1 x VGA (DB-15)
1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
Environment
Operating Temperature -20°C ~ 60°C
Humidity 10% to 95%@40°C (non-condensing) Storage Temperature -20°C ~ 70°C IP Level IP 65 compliant front panel |
Touch
Touch Screen 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface)
Touch Controller ilitek |
LCD
LCD Color 16.2M
Viewing Angle (H-V) 178°/178° |
Cutout Dimensions
270.50 x 214.10
|
Dimensions (LxWxH) (mm)
279.86 x 237.50 x 49.30
|
Power adapter
12V DC
|
Environment
Operating Temperature -20°C ~ 60°C
Humidity 10% to 95%@40°C (non-condensing) Storage Temperature -20°C ~ 70°C IP Level IP 65 compliant front panel |
