HYPER-EHL
Giá bán: 20.000.000 VNĐ
Giá đã bao gồm VAT
--5%
✔ Sẵn hàng
Mô tả

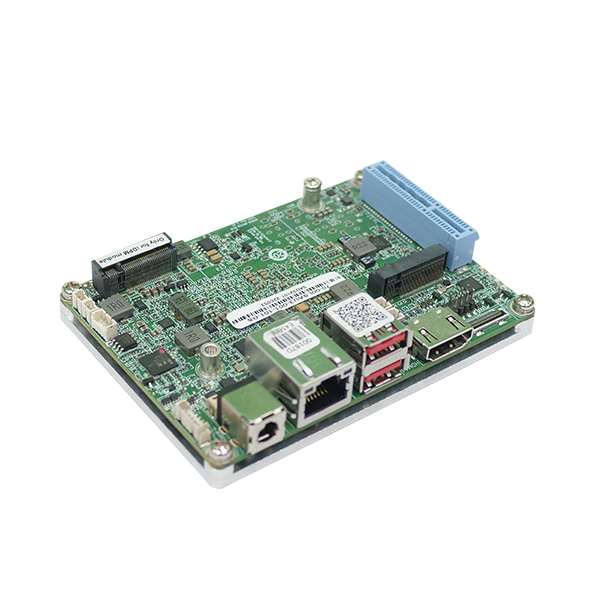

Pico-ITX SBC supports Intel® Celeron J6412/N6210 on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI™, iDPM, M.2 M key, USB 3.2, iSATA 6GB/s, COM, PCIe x4 for riser card and RoHS
Noi dung ho tro dien giai cho picture» Support Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
» Support Intel® I225V/I226V 2.5GbE Ethernet controller
» Support dual independent display via HDMI™ and iDPM
» Support one PCIe x4 and one M.2 M Key expansions
» Support two USB 3.2 Gen 2, two USB 2.0, with up to 10Gb/s transfer speed
Chi tiết |
|---|
Form Factor
Pico-ITX
|
CPU
Onboard Intel® Atom™ x6000 series Celeron® processor (Elkhart Lake platform) Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)
|
Dimensions (LxWxH) (mm)
100mm x 72mm
|
Net Weight
600g
|
Display Output
1 x HDMI™ : up to 4096x2160 @ 30Hz 1 x iDPM : support iEi eDP/ LVDS/ VGA module
|
Ethernet
1 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller
|
I/O Interface
1 x Internal RS-232/422/485 : 1x9 pin, P=1.25 2 x Internal USB 2.0 : 2x4 pin, P=2.0 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)
|
Expansion
1 x PCIe x4 (PCIe Gen3 x4) 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2)
|
Operating Temperature
-10°C~60°C
|
Humidity
5% ~95%, non-condensing
|
