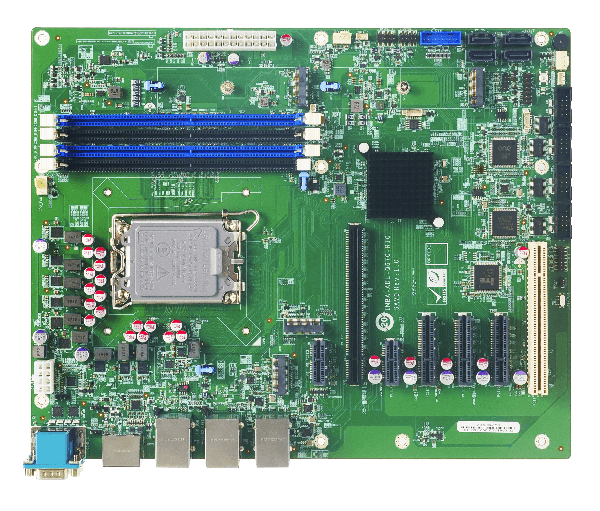

IMB-ADL-Q670
Giá bán: 0 VNĐ
Giá đã bao gồm VAT
-0%
✔ Sẵn hàng
Mô tả
micro-ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
» LGA1700 Intel® 12th/13th/14th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 125W)
» Dual-channel DDR4 3200MHz supported up to 128GB
» Support triple independent display via DVI,VGA and internal DP++
» Support one PCIe x16, two PCIe x4 and one PCIe x1 expansions
» Support two M.2 M keys and four SATA for storage
Chi tiết |
|---|
System CPU
LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
|
Chipset
Intel® Q670/Q670E
|
Memory
Four 288-pin3200 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB (Memory Max. 128GB)
|
Storage
4 x SATA : RAID 0/1/5/10 supported 2 x M.2(NGFF) - 1 x M Key (2242/2280, PCIe x4) 1 x M Key (2242/2280, PCIe x2)
|
I/O Interface
8 x Internal RS-232 : 2x20 pin, P=2.54 2 x Internal RS-232/422/485 : 2x5 pin, P=2.54 4 x External USB 2.0 (Type A) 6 x External USB 3.2 Gen1x1 : 5Gb/s(Type A) 4 x External USB 3.2 Gen2x1 : 10Gb/s(Type A) 1 x I²C : 1x4 pin
|
Audio
HD Audio - Realtek ALC888S HD Audio codec supports 7.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5 pin)
|
Operating Temperature
-10°C~60°C
|
